Introduction
This page is still being developed!
Class Relationships
The diagrams below shows which classes are contained within another class and which classes contain a reference to an external class.
App Replationships

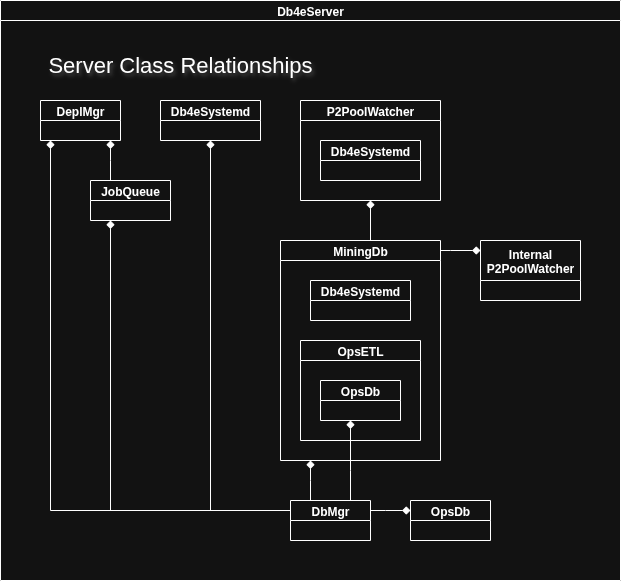

Server Relationships
Mining Data Origins
Db4E creates records in a SQLite database based on events that are discovered in the P2Pool log file and by querying the P2Pool API. See the schema page for detailed information.
Data Abtraction Layer
Db4E has a number of database related classes as outlined in the table below.
| Module | Description |
|---|---|
| SQLDb | Owns the SQLite database file, database connection and cursor. |
| BaseDb | Virtual class. |
| DeplDb | Owns the deployment tables and provides deployment related functionality |
| MiningDb | Owns the mining tables and provides mining related functionality |
| OpsDb | Owns the operations tables and provides operations related functionality |
