The Database 4 Everything - db4e

Table of Contents

Introduction and Scope

This site documents my db4e project. The db4e application is used to provide a console based dashbaord and near real-time visualizations into my Monero XMR cryptocurrency mining farm.

Command Line Utilities

db4e.py

This utility monitors the Mining Farm’s P2Pool daemon logs, creates records in the backend database and triggers updates to the web front end. See the db4e.py page for more information.

db4e-gui.py

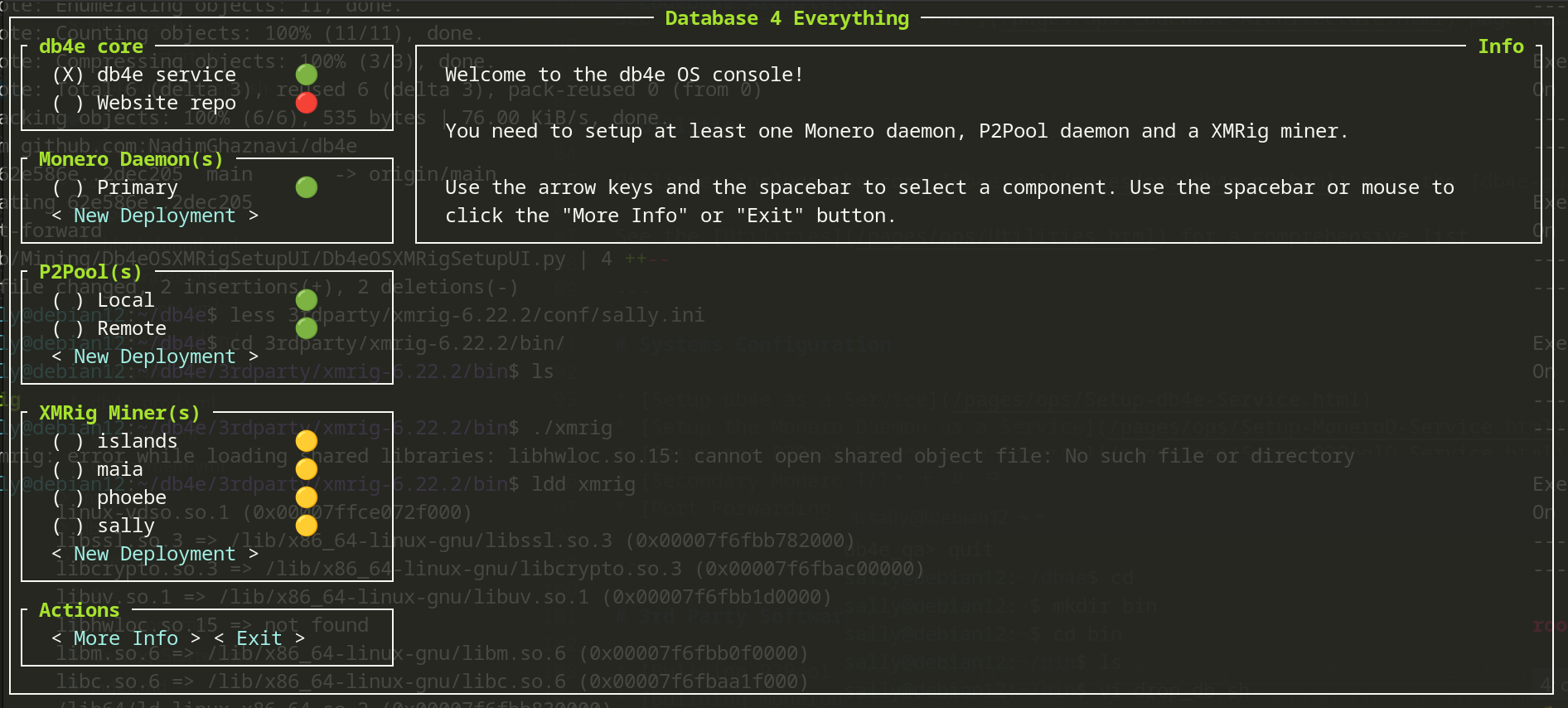

The db4e-gui.py application provides a console based monitoring solution for my Monero XMR Mining farm.See the db4e-gui.py page for more information.

backup-db.sh

The backup-db.sh utility is used to backup the backend MongoDB database. The database contains all of the historical data that the db4e.py application collects. See the backup-db.sh page for more information.

gitpush.sh

the gitpush.sh utility accepts the following arguments:

  • Source directory.
  • Filename.
  • Comment.

It uses these args to execute a git push command to push files up to Github.

restart_mining_services.sh

The restart_mining_services.sh script executed once a day from a cron job. It performs the following sequenced actions:

  1. Restart the Monero XMR daemon which is responsible for running the full blockchain node. The node is part of the larger, distributed Monero XMR ecosystem.
  2. Restart my Mining Farm’s P2Pool daemon.
  3. Restart the db4e P2Pool log file monitoring daemon.

Additionally, each miner also has a cron job to restart the xmrig mining software.

Basically, I restart all of my Mining farm’s services on a daily basis.

Historical Data on the Web

When the db4e P2Pool daemon log file monitoring daemon watches for events and creates MongoDb records for them. When one of the following events is found:

  • XMR payment made to my mining farm
  • Share found by my mining farm
  • Block found on the Monero XMR mini sidechain

The the application aggregates the daily totals for those events, generates a CSV File and pushes the file to GitHub where it is rendered using some Javascript code based around ApexCharts.

Backend Components

I designed the application to be modular and have a clear data abstraction layer. While the Database 4 Everything application is currently only being used to house data on my Monero XMR Mining farm, I designed it to be easily extended to house other data (e.g. system update, disk usage, CPU utilization and memory metrics).

Infrastructure Modules

Module Description
Db4eDb This module is responsible for all MongoDb operations.
Db4eLog This module is responsible for managing logging of the application.
Db4eStartup This module is responsible for loading db4e settings from an INI file.

Mining Modules

Module Description
MiningDb Accepts mining specific DB commands and then uses the Db4eDb module to execute them.
P2Pool Monitors the P2Pool daemon log file and creates corresponding events in MongoDb using the MiningDb module.

The modules below are called by the P2Pool module when the corresponding event is detected. These modules extract all historical data for the event, aggregate it into daily totals, writes that data to a CSV file and pushes the file to GitHub where it is rendered by Javascript Apexcharts code.

Module Description
BlocksFoundCsv Monero mini sidechain block found events.
SharesFoundCsv Share found events in my mining farm.
SharesFoundByHostCsv Share found events, by host, in my mining farm.
P2PoolPaymentCsv XMR payments made to my mining farm.
